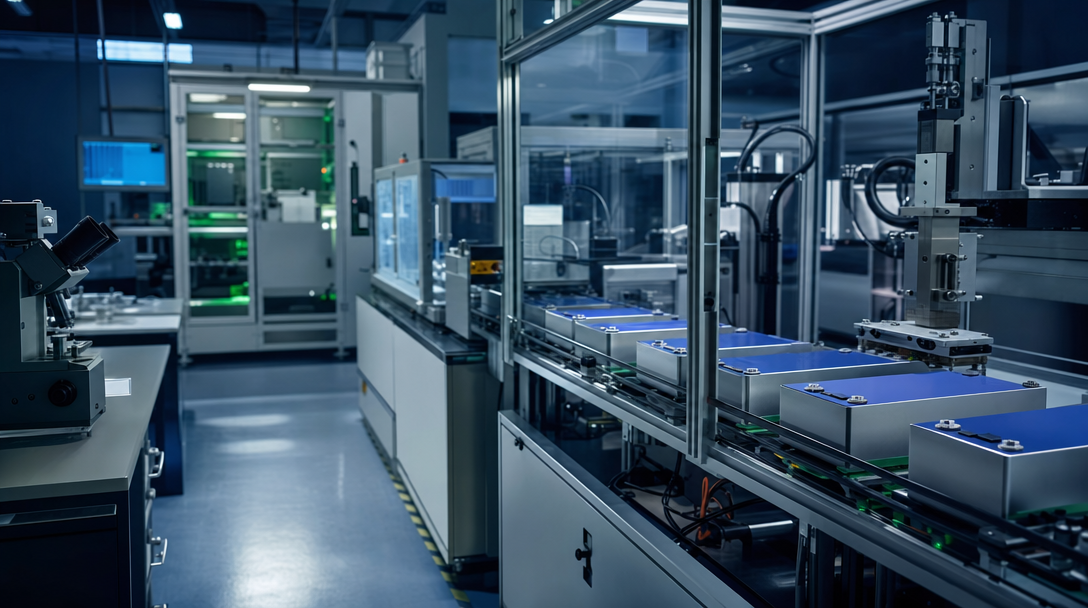

Prismatic Battery Pilot Line: Equipment Choices That Decide Cell Quality Before You Ever Build One

A university energy storage lab in China ordered a prismatic pilot line last year with one goal: validate a 72 Ah LFP cell for a grid storage partner. Six months in, they had working pouch cells from the same electrode batch — but the prismatic cells kept failing the partner's 10,000-cycle requirement. The pouch cells passed. The prismatic cells did not. The difference was not chemistry. It was how the electrode stack was built, how the case was sealed, and how the electrolyte was introduced into a rigid aluminum housing.

Prismatic cells are the format where pilot line mistakes are most expensive to hide. A pouch cell lets you see the jelly roll, restack it, and iterate quickly. A prismatic cell — once the can is laser-welded and the electrolyte is inside — is essentially a black box. You cannot see the stack alignment, the tab position, or the wetting state without cutting the cell open. This is why equipment decisions on a prismatic pilot line matter more than on any other format, and why the sequence of those decisions is just as important as the machines themselves.

Start With the Cell Format, Not the Machine List

Before specifying any equipment, define the prismatic cell dimensions, capacity target, and electrode stack geometry. Most pilot teams start with a commercially relevant size — for LFP storage cells that is often 36130180 or similar large-format dimensions, for power cells smaller formats in the 60-100 Ah range. The stack geometry determines almost every downstream machine: the stacking table size, the tab welding fixture, the case dimensions, and the formation cabinet channel count.

A common mistake is buying a stacking machine first and discovering later that the tab positions do not match the case design. Wangsheng's prismatic pilot lines start with a cell design review that fixes the stack layout, tab geometry, and case specification before any equipment order is placed. This single step eliminates most of the retrofit work that slows down later commissioning.

Stacking: The Step Where Prismatic Cells Are Won or Lost

Prismatic cells use Z-type stacking or lamination — electrode sheets are stacked alternately with separator, folded in a zig-zag pattern, and pressed into a stack. The two parameters that matter most at pilot scale are alignment accuracy and stacking speed consistency.

At pilot scale, alignment tolerance of ±0.1 mm is achievable with vision-guided stacking, and it is the single most important quality parameter in the entire prismatic process. A misaligned stack of 0.3 mm does not fail immediately — it shows up 500 cycles later as lithium plating at the stack edge or as an internal short that only appears during high-rate testing. For a pilot line whose job is to generate trustworthy cycle life data, that hidden defect is worse than an obvious failure, because it contaminates the entire dataset.

Stacking speed matters less than alignment consistency at pilot scale, but it still sets your practical throughput ceiling. A typical semi-automatic stacking station runs 0.3-0.5 seconds per sheet. For a 60-layer stack, that is roughly 20-30 seconds per stack plus handling time. Plan the pilot line's weekly cell output around this number before sizing the formation cabinet, or the formation step becomes the bottleneck.

Tab Welding and Case Assembly: Where Precision Becomes a Process

Prismatic cells use multi-layer tab ultrasonic welding for the electrode tabs and laser welding for the case seal. At pilot scale, the ultrasonic welder must handle the specific tab material stack-up — copper tabs for the anode, aluminum for the cathode — with weld strength above 100 N pull force. The welding parameters are format-specific, and a pilot line should budget time for tab weld development rather than assuming the welder's default recipe works.

The case sealing step is where prismatic differs most from pouch. The aluminum case is sealed with a laser welder, and the weld quality determines whether the cell leaks over its lifetime. At pilot scale, the practical requirement is a leak rate below 10⁻⁸ Pa·m³/s for the sealed case — this is verifiable with a helium leak detector, which is a small capital addition that pays for itself in avoided contamination issues.

Electrolyte Filling: A Rigid Case Changes Everything

This is the step where pouch cell experience misleads prismatic newcomers. In a pouch cell, the flexible packaging expands as electrolyte is introduced, and wetting is relatively forgiving. In a prismatic cell, the rigid aluminum case creates a fixed volume — the electrolyte must be filled in vacuum to reach the inner stack, and the wetting time is longer because the rigid case does not assist the process.

Vacuum filling with a programmable pressure profile is the standard for prismatic pilot lines, followed by a static rest period of 24-48 hours for full wetting. The filling station must control fill volume precisely, because overfilling risks venting through the sealing hole and underfilling leaves dry regions in the stack that become capacity loss after formation. Wangsheng's prismatic pilot lines use metering pumps with ±0.3% accuracy for this step, the same specification used on our pouch lines but with vacuum chamber programming specific to rigid cases.

Formation: The Hidden Throughput Constraint

Formation is where prismatic pilot lines most often stall. A 72 Ah cell requires a formation current that ties up cabinet channels for hours — a 0.05C formation step on a 72 Ah cell at 3.6 V nominal is roughly 3.6 A per channel, and a full formation protocol can take 12-48 hours depending on the chemistry and protocol design. If the pilot line runs 40 cells per week, that is 40 channels occupied for the entire protocol duration — and that is before counting reference electrode channels or auxiliary voltage measurement.

The practical rule for prismatic pilot lines: size the formation cabinet for the peak weekly batch, not the average. Wangsheng's formation cabinets support independent current control per channel with multi-stage voltage programming, which lets pilot teams run different formation protocols in parallel on the same cabinet. This is the difference between a line that produces 40 cells per week and one that produces 40 cells every four days.

Budgeting for a Prismatic Pilot Line

Based on Wangsheng's delivery experience, a complete prismatic pilot line (excluding dry room construction) falls into a different budget envelope than pouch or cylindrical lines, mostly because of the stacking machine, the laser welder, and the larger formation cabinet:

The stacking machine and the formation cabinet together account for roughly half the total budget. Teams that try to save on either one pay for it later — in stack alignment rework or in formation throughput that caps the entire line's weekly output.

Commissioning Sequence That Avoids Rework

The order of commissioning matters. Wangsheng recommends the following sequence for prismatic pilot lines, based on the failure modes we see most often in customer lines:

1. Build and qualify the electrode stack first, before any case or welding work. Verify alignment on a test stack with a coordinate measuring check.
2. Qualify tab welding with pull tests above 100 N before proceeding to case assembly.
3. Laser-weld test cases and verify leak rate with the Helium Detector before committing to full production cases.
4. Fill and wet a small batch (5-10 cells) with the vacuum profile, then check capacity and DCIR before scaling up the batch.
5. Run the full formation protocol on the qualified batch and compare the data against the partner specification.

This sequence converts the prismatic pilot line from a "build cells and hope" exercise into a staged qualification process where each step produces verifiable data before the next one starts.

Is a Prismatic Pilot Line Right for Your Team?

Prismatic pilot lines make sense when the development target is a storage cell, an automotive prismatic cell, or a customer specification that requires large-format rigid cells. They are also the right choice when the eventual production line is prismatic — piloting in the target format avoids the chemistry transfer issues that appear when moving from pouch pilots to prismatic production.

But if the team's goal is rapid chemistry screening or early material validation, a pouch pilot line is faster and more forgiving. The prismatic format adds process complexity — stacking precision, case sealing, rigid-case filling — that is worth the investment only when the end product demands it.

Wangsheng has delivered prismatic pilot lines for storage cell development and automotive applications, from cell design review through commissioning. Contact us to discuss your cell format and target capacity, or review our prismatic cell equipment capabilities to see how the line fits together.
